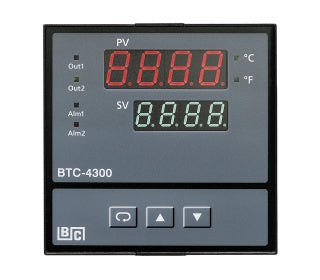

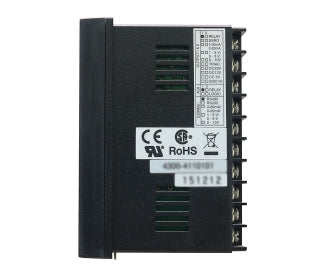

BTC 4300 Temperature Controller

BTC-4300-4110100

96x96mm / 90 - 264 VAC, 47-63 HZ  / Input: Input 1-Universal Input
Thermocouple: J, K, T, E, B, R, S, N, L RTD: PT100 DIN, PT100 JIS Current: 4 - 20mA, 0 - 20mA Voltage: 0 - 1V, 0 - 5V, 1 - 5V, 0-10V Input 2-CT: 0 - 50 Amp.AC Current Transformer Analog Input: 0 - 1V, 0 - 5V, 1 - 5V, 0 - 10V Event Input (EI)   / OUT1: Relay rated 2A / 240VAC  / OUT2: None  / AL1: Form A relay 2A - 240VAC / AL2: None / Comms: None

High-end Process and Temperature Controllers

The Fuzzy Logic plus PID microprocessor-based thermo controller, incorporate two bright, easy to read 4-digit LED displays, indicating process value and set point value. The Fuzzy Logic technology enables a process to reach a predetermined set point in the shortest time, with the minimum of overshoot during power-up or external load disturbance.

• Fast input sample rate (5 times / second)
• Basic & full function
• User menu configurable
• Pump control
• Fuzzy+PID microprocessor-based control
• Automatic programming
• Differential control
• Auto-tune function
• Self-tune function
• Sleep mode function
• "Soft-start " ramp and dwell timer
• Programmable inputs (thermocouple,RTD,mA,VDC)
• Analog input for remote set point and CT
• Event input for changing function & set point
• Programmable digital filter
• Hardware lockout + romote lockout protection
• Loop break alarm
• Heater break alarm
• Sensor break alarm+Bumpless transfer
• RS-485,RS-232 communication
• Analong retransmission
• Signal conditioner DC power supply
• A wide variety of output modules available
• Safety UL / CSA / IEC1010-1
• EMC / CE EN 61326
