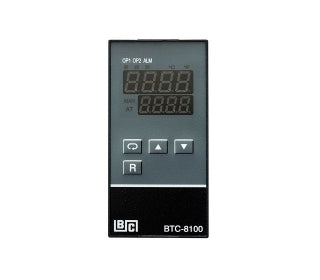

BTC-8100 Temperature Controller

BTC 8100 - 4110100

48x96mm / 90 - 250 VAC, 47-63 HZ  /  Input Thermocouple: J, K, T, E, B, R, S, N, L RTD: PT100 DIN, PT100 JIS / OUT1: Relay rated 2A - 240VAC  / OUT2: None / AL: Form C relay 2A - 240VAC / Comms: None

The Fuzzy Logic plus PID microprocessor-based temperature controller, incorporate one bright, easy to read 4-digit LED display, indicating process value and set point value. The Fuzzy Logic technology enables a process to reach a predetermined set point in the shortest time, with the minimum of overshoot during power-up or external load disturbance.

• Easy-to-use
• Fuzzy modified PID heat & cool control
• Fast A-D sampling rate (5 times/s)
• Universal input (PT100, thermocouple)with high accuracy 18-bit A-D
• Analog output (linear current or voltage)uses high accuracy 15-bit D-A
• RS-485 RS-232 interface
• Programming port provided on board
• Support manual control & auto-tune function
• Wide variety of alarm mode selection
• Lockout protection control
• Bumpless transfer during failure mode
• Soft-start ramp and dwell timer
• Bright display stabilized with digital filter
• Front panel sealed to NEMA 4X & IP65(model C21)
• UL/CSA/CE approval
• High performance with low cost
